Movable Concrete Machines

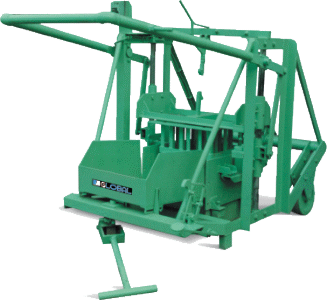

430 G MANUAL MOVABLE CONCRETE
BLOCK MAKING MACHINE

NO. OF OPERATIONS : 50 - 55 PER HOUR
POWER VIBRATOR : 1.5HP, (1PH, 3PH)
VIBRATIONS : 6000Hz constant
AMPLITUDE : ADJUSTABLE
MOULDING AREA : 430 x 600MM
MACHINE WEIGHT : 700KG (APPROX.)
DIMENSIONS : 1000 x 1250 x 1500mm

PRODUCTION PER STROKE

400 X 200 X 200 MM(8") 2 PER STROKE
400 X 200 X 150 MM(6") 3 PER STROKE
400 X 200 X 100 MM(4") 4 PER STROKE

This is an inexpensive manual block laying machine. The machine is perfect for a start up, small scale block maker, who needs more production and better quality blocks. Blocks are laid on a concrete floor and machine is moved to the next laying. This procedure eliminates the need for pallets and block handlers who would usually remove the green blocks and pallet from the machine, before additional blocks can be made. Any type of Ram and Mould can be fitted into the machine. Custom moulds can be made to you specifications. This machine can be fitted with a 1.5 HP., 2800 RPM electric motor or a 4.4 HP Diesel motor with clutch and throttle controls for the vibrator.
